Vertical Portable Autoclave 22 ltr 12x12

20000 INR/Unit

Get a Price/Quote

Product Details:

Type Vertical Portable Autoclave
Chamber Size 12 x 12 inches (Diameter x Depth)
Chamber Thickness 2.5 4 mm stainless steel
Outer Size 14 x 14 inches (approximate external dimension)
Compressed Air Not applicable for standard model
Door Type Radial Locking Lid/Pressure-lock with Wing Nuts
Design Pressure 2.1 kg/cm (30 psi)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Vertical Portable Autoclave 22 ltr 12x12 Price And Quantity

Price 20000 INR/Unit
Minimum Order Quantity 1 Unit

Vertical Portable Autoclave 22 ltr 12x12 Product Specifications

Outer Trolley Not included, optional feature
Valves Safety valve, steam release valve, drain valve
Compressed Air Not applicable for standard model
Steam Operates on electrically generated steam
Power Consumption 2-3 kW (heating element, single phase)
Piping System Stainless steel with safety valve, steam release, and drain valve
Outer Size 14 x 14 inches (approximate external dimension)
Chamber Thickness 2.5 4 mm stainless steel
Sterilization Time 15 30 minutes (depending on load)
Insulation Double walled with insulation in between (asbestos/ceramic/rockwool)
Heat Uniform Uniform heat distribution by external heating element
Working Pressure 1.05 to 1.2 kg/cm (15-18 psi)
Type Vertical Portable Autoclave
Temperature Scope Ambient to 121C
Net Weight Approximately 19-22 kg
Recording Parameters Manual dial gauge provided; digital available on request
Chamber Size 12 x 12 inches (Diameter x Depth)
Design Pressure 2.1 kg/cm (30 psi)
Door Type Radial Locking Lid/Pressure-lock with Wing Nuts
Design Temperature 121C
Sterilizing Temperature Up to 121C
Working Temperature 121C
Inner Trolley Not included, optional feature

Vertical Portable Autoclave 22 ltr 12x12 Trade Information

Payment Terms Cash Advance (CA), Cash in Advance (CID)
Supply Ability 20 Unit Per Week
Delivery Time 7 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market , All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

Product Description

A vertical portable autoclave is a pressure cooker-like device used to sterilize equipment and materials by using steam under pressure. Unlike traditional autoclaves which are large and stationary, vertical portable autoclaves are designed to be compact and easy to transport, making them ideal for field use, small labs, or emergency situations.

Here are some key features of vertical portable autoclaves:

Size and weight: They are typically smaller and lighter than their stationary counterparts, often weighing around 20-50 pounds and having a chamber capacity of 5-20 liters

Durable Construction and Design

Our 22-litre vertical portable autoclave is made from high-quality stainless steel (304/316) for the chamber and lid, ensuring lasting durability, resistance to corrosion, and easy maintenance. The exterior is coated with epoxy on mild steel for added protection. With a radial locking lid and robust pressure safety mechanisms, the autoclave is built to endure daily intensive use in demanding environments.

Efficient and Uniform Sterilization

This autoclave utilizes an immersion-type electric heater and double-walled insulation for rapid and uniform heat distribution, allowing sterilization temperatures up to 121C. The equipment is suitable for a variety of applications, including sterilizing glassware, dressings, media, and laboratory instruments. With flexible operation modes and a sterilization cycle of 1530 minutes, it optimizes time and energy use.

User-Friendly Controls and Safety Features

The unit features an analog control panel with a timer and pressure gauge, while digital options are available to suit specific workflow preferences. Safety is ensured with a pressure release valve, steam release valve, drain valve, and automatic power cut-off. An earthing system and durable lid gasket (silicone/neoprene) further enhance operational security and user safety.

FAQs of Vertical Portable Autoclave 22 ltr 12x12:

Q: How does the Vertical Portable Autoclave achieve uniform heat distribution during sterilization?

A: The autoclave uses an immersion-type electric heating element combined with double-walled insulation (asbestos/ceramic/rockwool) to ensure uniform temperature distribution throughout the chamber, effectively sterilizing the contents.

Q: What safety features are included in this autoclave model?

A: The autoclave is equipped with multiple safety features including a pressure release valve, automatic power cut-off, earthing system, radial locking lid/pressure-lock with wing nuts, and durable silicone or neoprene lid gaskets to prevent leaks.

Q: When should I use this autoclave for sterilization purposes?

A: This autoclave should be used whenever there is a need to sterilize glassware, laboratory instruments, media, dressings, and similar items, especially in laboratory, medical, and research settings requiring reliable decontamination.

Q: Where can this autoclave be installed and operated effectively?

A: The compact design (external size 14 x 14 inches) and portable structure make it suitable for installation on laboratory tables, hospital sterilization rooms, and other workplace environments where space is limited.

Q: What is the process for operating the autoclave and monitoring sterilization parameters?

A: Operation involves loading items into the supplied stainless steel basket/tray, setting the timer and desired pressure using the analog panel, and monitoring with the dial gauge. After sterilization, steam is safely released through designated valves, and drainage is managed via the provided drain valve.

Q: How does using this autoclave benefit laboratory or hospital workflows?

A: The autoclave streamlines sterilization by offering fast cycles (1530 minutes), reliable safety measures, consistent results, and easy maintenance, increasing efficiency and ensuring the utmost cleanliness in critical environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Vertical Portable Autoclave' category

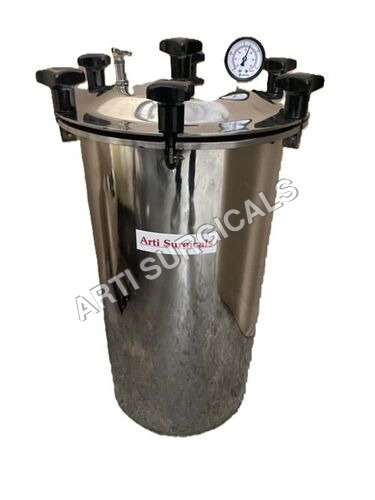

Vertical Portable Autoclave 37 ltr 12x20 single wall Price : 20000 INR/Unit Minimum Order Quantity : 1 Working Pressure : 1.2 kg/cm2 (15 psi) Design Pressure : 2.1 kg/cm2 (30 psi) Door Type : Lid type with radial locking system Design Temperature : Up to 134C max Sterilizing Temperature : Up to 121C Working Temperature : 121C Spraying Piping : Not applicable for single wall Type : Other, Vertical Portable Autoclave Temperature Scope : Ambient to 121C Net Weight : Approx. 28 kg Chamber Size : 12 x 20 inches (37 Ltr) Chamber Thickness : 2.5 3 mm (SS 304 grade) Sterilization Time : 0 60 minutes timer Insulation : Not insulated (single wall) Heat Uniform : Uniform by steam circulation Valves : Safety valve, steam release valve, vacuum breaker Compressed Air : Not required (operated electrically) Steam : Internal electrically generated Power Consumption : 220V AC, 2.0 3.0 KW Piping System : SS 304 grade, manual vent Outer Size : Approx. 14 x 24 inches

Send Inquiry

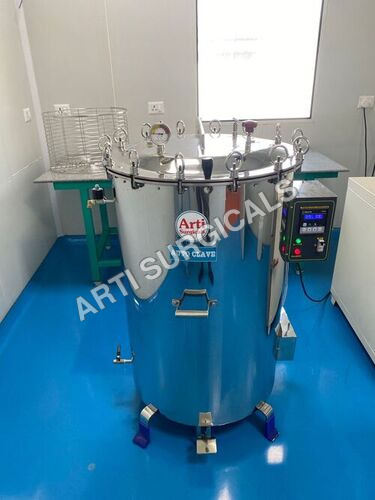

Vertical autoclave machine Price : 35000 INR/Unit Minimum Order Quantity : 1 Working Pressure : 1.2 Kg/cm2 kgf/cm2 Color : Silver Application : Industrial Material : Stainless Steel Product Type : Vertical Autoclave Usage : Industrial Operate Method : Semi Auto Voltage : 220 Volt (v)
