Cylindrical Autoclave 16x24 80 liters

Get a Price/Quote

Product Details:

Product Type Cylindrical Autoclave 16x24 80 liters
Operate Method Automatic
Usage Industrial
Color Silver
Material Stainless steel
Type Cylindrical Horizontal Autoclave
Chamber Size 16 inches diameter x 24 inches length
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Cylindrical Autoclave 16x24 80 liters Price And Quantity

Minimum Order Quantity 1 Piece

Water Inlet Automated with float level control
Display Digital Temperature and Pressure
Safety Features Automatic pressure and temperature cutoff
Chamber Capacity 80 liters
Automation Microprocessor-based control panel
Gasket Type Silicone Rubber
Cycle Modes Standard, Dry, Liquid, Custom

Cylindrical Autoclave 16x24 80 liters Product Specifications

Design Pressure 2.5 kg/cm
Working Temperature 121C - 134C
Recording Parameters Pressure, Temperature, Cycle Time
Product Type Cylindrical Autoclave 16x24 80 liters
Outer Trolley Provided for chamber loading/unloading
Usage Industrial
Temperature Scope Ambient to 134C
Type Cylindrical Horizontal Autoclave
Piping System 304 Grade Stainless steel
Design Temperature 134C
Operate Method Automatic
Spraying Piping Integrated Stainless Steel piping system
Steam Direct steam injection
Insulation Mineral wool layer
Outer Size Approx. 18x26 inches
Sterilization Time Adjustable (20 to 60 min)
Chamber Thickness 5 mm
Inner Trolley Removable, Stainless Steel
Color Silver
Chamber Size 16 inches diameter x 24 inches length
Compressed Air Required for automatic operation
Material Stainless steel
Working Pressure 1.2 to 1.5 kg/cm
Valves Safety, Pressure, Steam, Exhaust
Power Consumption 4.5 kW
Sterilizing Temperature 121C
Spraying Mode 360 uniform spraying
Net Weight Approx. 120 kg
Heat Uniform 2C across chamber
Door Type Single Hinged Door (Manual/Automatic Lock)

Water Inlet Automated with float level control
Display Digital Temperature and Pressure
Safety Features Automatic pressure and temperature cutoff
Chamber Capacity 80 liters
Automation Microprocessor-based control panel
Gasket Type Silicone Rubber
Cycle Modes Standard, Dry, Liquid, Custom

Cylindrical Autoclave 16x24 80 liters Trade Information

Supply Ability 100 Piece Per Month
Delivery Time 7-10 Days

Product Description

Introducing the new release Cylindrical Autoclave 16x24 (80 liters)a must-have for industrial applications demanding flawless sterilization. This triumphant machine features a renowned stainless steel chamber with microprocessor-based automation, automatic pressure and temperature cutoffs for safety, and a digital display for real-time monitoring. Its removable stainless steel trolley, advanced silicone gasket, and uniform 360 spraying system ensure optimal performance, while mineral wool insulation boosts energy efficiency. Grab yours now to elevate your sterilization set-up and enjoy reliable, precise, and secure operation every cycle!

Competitive Edge & Versatile Applications

The Cylindrical Autoclave 16x24, with its robust stainless steel construction and customizable cycle modes, excels in industries like pharmaceuticals, laboratories, and research institutes. Its primary competitive advantages are the automated control panel, rapid cycle flexibility, and uniform heat distribution. Use it for sterilizing lab equipment, liquids, or textilesmaking it perfect for both general and specific use cases. Whether youre a manufacturer or service provider, this autoclave boosts your operational effectiveness in every scenario.

Sample Policy, Export Markets & Supply Chain Strengths

We promote easy sample exchange and flexible procurement policies for distributors, importers, and suppliers. Serving a broad export marketincluding the Middle East, Africa, and Southeast Asiaour supply ability meets tight timelines with express shipping for urgent requirements. Customers benefit from a responsive after-sales service network throughout India, ensuring quick exchange and seamless integration into their workflows. Position your business ahead in global markets by leveraging our robust and efficient autoclave supply chain.

FAQs of Cylindrical Autoclave 16x24 80 liters:

Q: How does the Cylindrical Autoclave ensure safety during operation?

A: The autoclave incorporates automatic pressure and temperature cutoffs, along with robust safety, pressure, and steam exhaust valves, to prevent any hazardous conditions and ensure operator safety at all times.

Q: What types of sterilization cycles can be performed with this autoclave?

A: This device offers multiple cycle modes including Standard, Dry, Liquid, and Custom, making it suitable for sterilizing various materials like laboratory tools, liquids, and textiles with precision.

Q: When should the removable stainless steel trolley be used?

A: The inner trolley is utilized for easy loading and unloading of materials, allowing for safer handling and improved workflow during both preparation and post-sterilization processes.

Q: Where is this autoclave most commonly used?

A: It is widely used in industrial and laboratory environmentssuch as pharmaceutical companies, research institutions, hospitals, and manufacturing unitswhere reliable sterilization is crucial.

Q: What benefits does the 360 uniform spraying provide?

A: The integrated 360 stainless steel spraying system ensures thorough and even distribution of steam, resulting in flawless sterilization and consistent results across the entire chamber with heat uniformity of 2C.

Q: How is usage data such as pressure, temperature, and cycle time recorded?

A: The microprocessor-based control panel digitally tracks and records key sterilization parameterspressure, temperature, and cycle timefor compliance and quality assurance purposes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'HPHV Cylindrical Autoclave' category

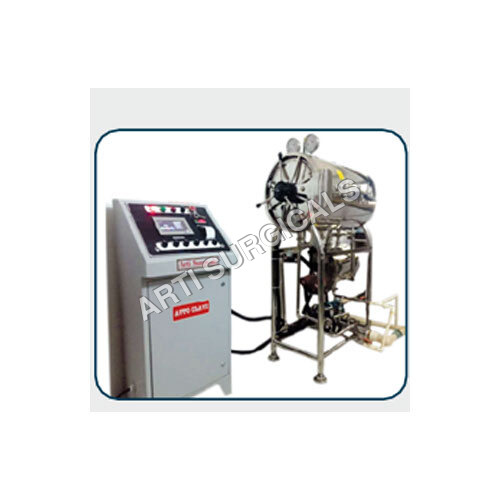

Cylindrical Autoclave 16x30 100 liters Price : 350000 INR/Piece Minimum Order Quantity : 1 Type : Other, Horizontal cylindrical Usage : Industrial Working Temperature : 121C (typical), max 134C Celsius (oC) Product Type : Cylindrical Autoclave 16x30 100 liters Material : Stainless steel Color : Silver Piping System : Corrosionresistant SS304/316 Temperature Scope : Ambient to 134C (user selectable) Celsius (oC) Spraying Piping : Stainless steel spray nozzles and piping inside chamber Operate Method : Automatic Design Temperature : 135C Celsius (oC) Recording Parameters : Digital temperature/pressure logger (optional chart recorder) Outer Trolley : Provided (optional for easy chamber loading/unloading) Valves : Safety, steam release, air vent, drain (all SS) Working Pressure : 1.2 kg/cm (typically 15 psi) kgf/cm2 Compressed Air : 68 bar required for operation of pneumatic valves (if equipped) Door Type : Radial locking or sliding, manual/automatic Heat Uniform : 1C throughout the chamber Net Weight : Approx. 150 kg Kilograms (kg) Spraying Mode : Uniform 360 spraying for complete sterilization Sterilizing Temperature : 121C standard (higher available on request) Celsius (oC) Power Consumption : 46 kW (depending on model & steam source) Kilowatt (kW) Outer Size : Approx. 22 x 36 inches (including insulation and external fittings) Insulation : Mineral wool or glass wool (hightemperature rated) Steam : Required, external or builtin steam generator optional Chamber Size : 16 x 30 inches (diameter x depth) Inner Trolley : Provided (designed for chamber size 16x30 inches) Chamber Thickness : 46 mm stainless steel Millimeter (mm) Sterilization Time : 099 minutes (adjustable) Minutes

Send Inquiry

Cylindrical Autoclave 16x36 120 liters Price : 8000 INR/Piece Minimum Order Quantity : 1 Type : Other, Horizontal Cylindrical Usage : Laboratory Working Temperature : 121C Celsius (oC) Product Type : Cylindrical Autoclave 16x36 120 liters Material : Stainless steel Color : Silver Piping System : SS316 piping with safety features Temperature Scope : Up to 134C Celsius (oC) Spraying Piping : Highpressure stainless steel spray pipes Operate Method : Automatic Design Temperature : 134C Celsius (oC) Recording Parameters : Digital temperature and pressure recorder Outer Trolley : Provided Valves : High pressure safety, steam release, and air vent valves Working Pressure : 1.21.5 kg/cm kgf/cm2 Compressed Air : Required Door Type : Manual swing type/single door Heat Uniform : Uniform heat distribution by steam jacket Net Weight : Approx. 120 kg Kilograms (kg) Spraying Mode : Rotational spraying Sterilizing Temperature : 121C Celsius (oC) Power Consumption : 36 kW (depends on model) Kilowatt (kW) Outer Size : 16x36 inches Insulation : High grade mineral wool/ceramic insulation Steam : External steam source Chamber Size : 16x36 inches (120 liters) Inner Trolley : Removable Stainless Steel Trolley Chamber Thickness : 46 mm (Stainless steel grade 304/316) Millimeter (mm) Sterilization Time : 1530 minutes Minutes

Send Inquiry

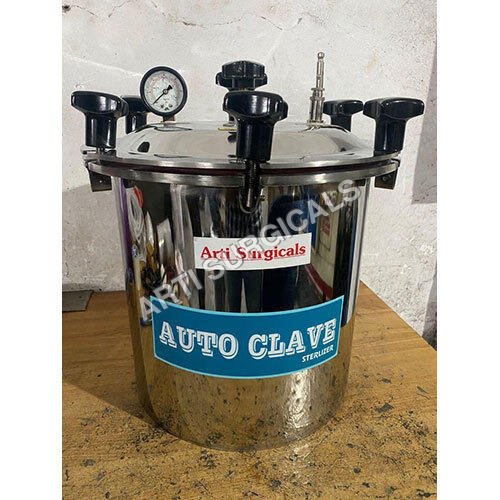

Cylindrical Autoclave 20x36 185 liters Price : 8000 INR/Piece Minimum Order Quantity : 50 Type : Other, Cylindrical Autoclave 20x36 185 liters Usage : Laboratory Working Temperature : 121 Celsius (oC) Product Type : Cylindrical Autoclave 20x36 185 liters Material : Stainless steel Color : Silver

Send Inquiry

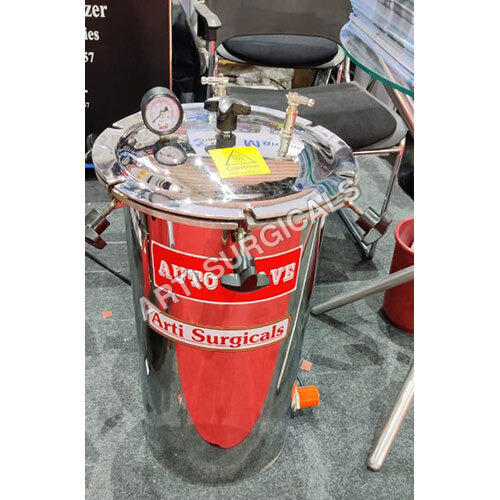

Cylindrical Autoclave 20x30 150 liters Minimum Order Quantity : 1 Type : Other, Cylindrical Autoclave 20x30 150 liters Usage : Laboratory Working Temperature : 121 Celsius (oC) Product Type : Cylindrical Autoclave 20x30 150 liters Material : Stainless steel Color : Silver
